Rule livewell pump cartridge removal

Rule and Mayfair pumps have many models that work this way. Replacement Motor Cartridges Original Pro-Series Livewell Pumps Replacement motor cartridges for Rule Cartridge Bilge pumps and LivewellAerator pumps.

Clean out debris and press motor cartridge firmly into hous-ing then hand-tighten blue collar nut to housing.

Rule livewell pump cartridge removal. Checking Livewell Pump - Changing New Cartridge Tip. Disconnect positive and negative leads from motor cartridge to be replaced 2. To remove the motor cartridge squeeze both locking tabs and turn motor coun-terclockwise until it stops.

3 Lift-Out 1 1 2 Squeeze Tabs 18 Turn Counterclockwise To Install. Push Down 1 2 2 3 Hear Tabs Snap 18 Turn Clockwise To Lock in. Motor cartridge removal system patent-pending rotatable base that allows you to position the discharge nozzle at any location and threaded nylon hose barb attachments which allow for various hose mounting options.

Other features include a built-in dual port option water-cooled housing and positive snap motor cartridge locking mechanism. If you are talking about detaching the pump cartridge from the base many of them snap out by turning counter clockwise a quarter to half a turn. You can then lift them out and replace the pump and reattach the new one by reversing the procedure.

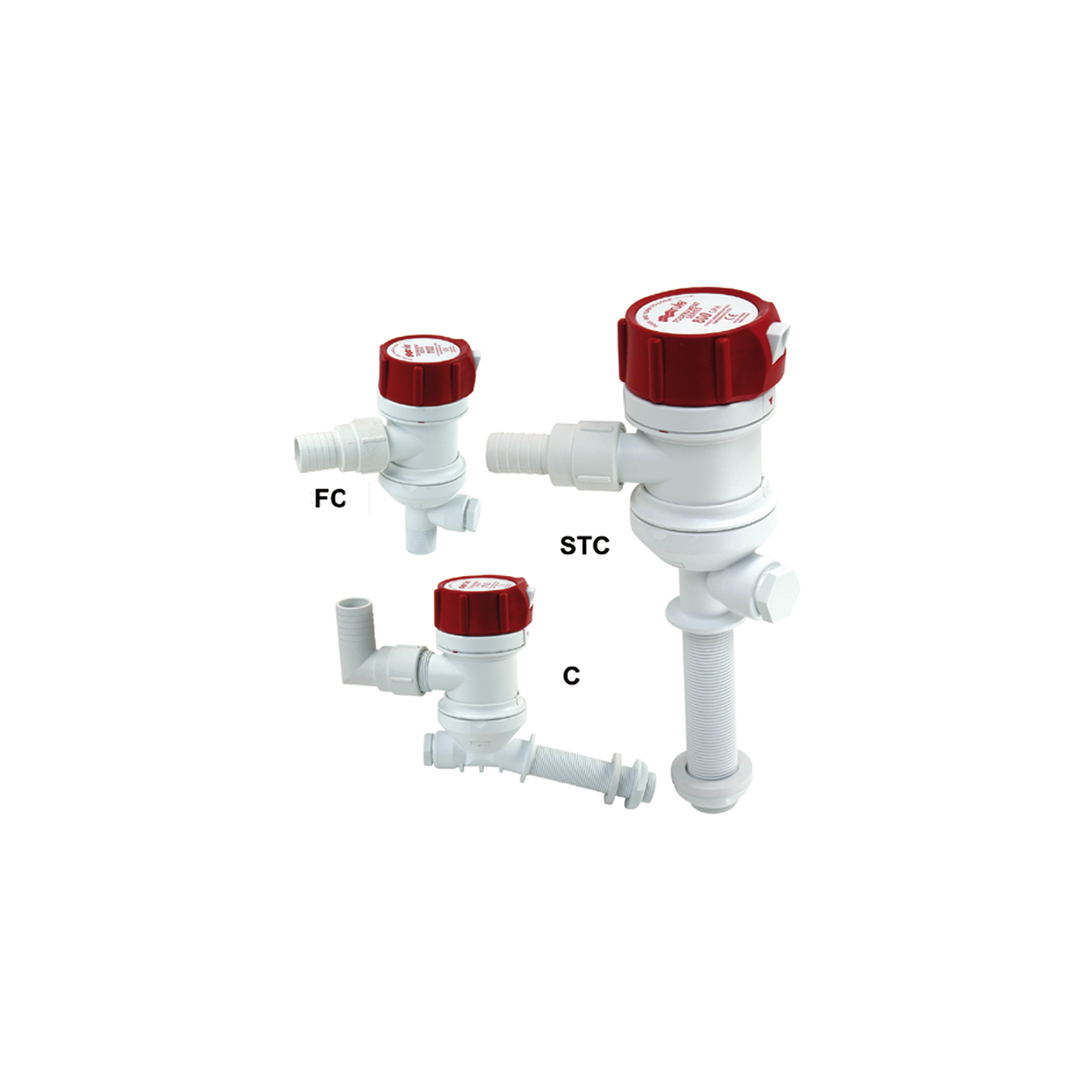

Rule and Mayfair pumps have many models that work this way. 405 FC 1100 GPH Livewell Pump with 1 Straight Pickup Tube 6 1100 790 R eplacement Motors 45D R 500 GPH R eplacement Motor 25 500 340 46D R 800 GPH R eplacement Motor 5 800 490 47D R 1000 GPH R eplacement Motor 6 1100 790 Press Cartridge Release Button To remove motor cartridge. Twist Cartridge Counterclockwise Pull Cartridge Straight Up.

Depress the tabs rock the pump from side to side in the same and opposite direction and the locking tabs while lifting the pump and. The innovative design includes many new and exciting features including. A quick one-hand push button motor cartridge removal system patented rotatable base that allows you to position the discharge nozzle at any location and threaded nylon hose barb attachments which allow for various hose mounting options.

Seacock MUST be closed before removing cartridge from pump housing. Impeller and Motor Cartridge. First and most important close seacock valve.

Remove motor cartridge by removing locking screw and then unscrewing the blue-collar nut. Clean out debris and press motor cartridge firmly into housing then hand-tighten blue. LivewellBaitwell Pumps The LivewellBaitwell Pumps are built on Rules unsurpassed quality and leadership in pump design and technology.

The innovative design includes many new and exciting features including. A quick one-hand push button motor cartridge removal system patented rotatable base that allows you to. I replaced all of the wiring and pumps in my boat last spring.

The three 800 GPH Rule livewell pumps got their first use in late May. I believe it was the day after Thanksgiving when two of the pumps quit pumping. The motors ran and it turned out that the shafts rusted to the point that they sheared.

Rule sent me new cartridges under warranty. Livewell Pump 800 GPH Ang Rule 403C Tournament Series Livewell Pump 12V Push button motor cartridge removal makes it quick and easy to replace a motor or change your output. Base rotates 360 to fit any application.

Cartridge only allows the fitting and hose to remain totally intact. To Change Motor Cartridge 1. Block off the thru-hull before removing the motor cartridge.

Turn off power to the pump then disconnect wiring to cartridge. Press cartridge button twist counterclockwise and pull motor cartridge straight up. Reconnect wire to new motor cartridge.

Rule understands this and makes it a simple to replace a damaged or non-functioning pump motor. The 500 GPH pump cartridges are direct replacement motors for the now discontinued Pro-Series livewell pumps. The cartridge design makes quick work getting a pump back up and operational.

Integrated side clips secure the pump motor to the pump body making it. 03 LivewellBaitwell Pumps INTRODUCTION LivewellBaitwell Pumps The LivewellBaitwell Pumps are built on Rules unsurpassed quality and leadership in pump design and technology. The innovative design includes many new and exciting features including.

A quick one-hand push button motor cartridge removal system patented rotatable base that allows you to position the. Replacement Motor Cartridges Original Pro-Series Livewell Pumps Replacement motor cartridges for Rule Cartridge Bilge pumps and LivewellAerator pumps. Oxygenator Spray Head Rules Oxygenator spray head sprays streams of water back into the livewell tank enriching the water with oxygen.

Rule High Water Bilge Alarm - 1-year limited location. Back of alarm Rule Panel Switches - 1-year limited location. Rear of face plate Rule Bilge Hose - 1-year limited location.

NA - Base on store receipt Except as otherwise required by law Rule shall at its option and at no cost to the customer replace any product which fails to conform to the warranty. I have one seacock valve for the intake. I close it remove the damaged pump and insert the new pump head.

It slides into the cartridge so its real quick. I do get water draining from the livewell into the bilge but its not enough to worry about. I also prep the pump with a waterproof quick connector for the electrical.

Clean out debris and press motor cartridge firmly into hous-ing then hand-tighten blue collar nut to housing. Make sure to align the finger holes on blue collar nut to allow room for locking screw. Align spacer and lock-ing screw.

Assemble screw and spacer into existing hole. OPERATION Never operate equipment if gasoline fumes are present. Well I got my pump cartridges from Ranger.

Went to put them in to only find my boat has the Mayfair part number 23501 and 22101 non cartridge pumps. Now I will have to come up with something else. Looks like a relatively easy repair will turn into a major plumbing job.

I called Ranger and they are now sending me Rule cartridge pumps. Nitro likely used a Rule pump in your boat. When I was gently pulling my hose off one of the pumps the ribbed outlet broke.

When I removed by bilge pump from the base the clips on the base broke. My boat is a nx882 I think the livewell pump froze and cracked when I pump water into the livewell I think its pumping into the hull also. Rule Livewell Replacement Motor Cartridge.

Replacement Livewell Motor Cartridges for rule torunament series for 500GPH 800GPH 1100GPH. Rotatable base for positioning discharge hose. One hand push button motor release mechanism.

Positive Snap motor cartridge locking mechanism. Dual port option for washdown pump.
